The Tahoma

One frame. Every layout.

A single switch body. Swappable faceplates in 1, 2, 4, or 8-button configurations. Change the room, not the hardware.

ConfigureSee the details

Interactive

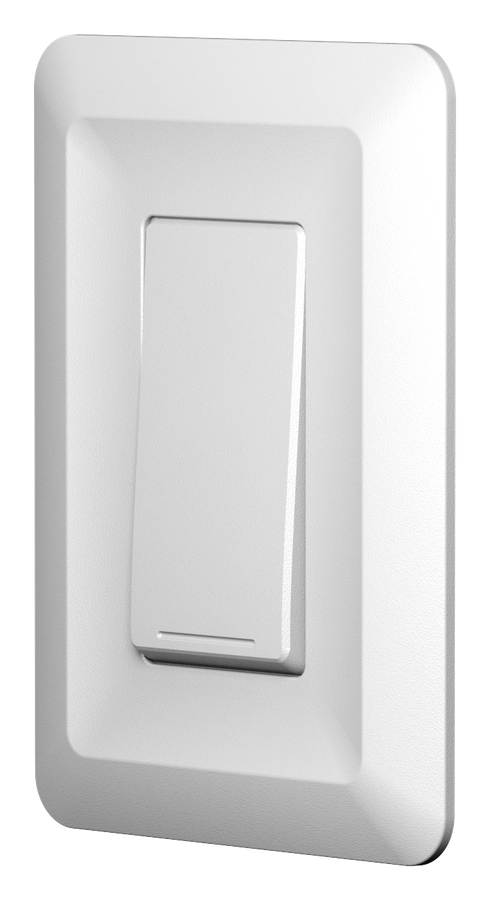

Pick a faceplate.

Every Tahoma shares the same frame and footprint — only the center panel changes. Available in 1, 2, 4 and 8-button configurations.

White

White is standard. Black, Brushed Aluminum, Brushed Brass and Anodized Aluminum are available on request at a premium.

An eight-button Tahoma in anodized aluminum on the wall of a loft living room
Tahoma 8-button, Anodized Aluminum.

Details

Designed to adapt.

Scene memory

Long-press any button to capture the current state. Release, and it's saved across power cycles.

Engravable plates

Order blank, or have your scene names laser-engraved at the factory.

One frame, every layout

All button configurations share a single frame and footprint. Change the layout by changing the center panel — interchangeable across Tahoma configurations.

Specs

Tahoma at a glance.

Part number
CYN-SWX-1-W — pick a button count and finish above to build yours
Configurations
1, 2, 4 or 8 button
Control type
Momentary push button
Button programming
On, Off, Toggle, Raise, Lower, Scene, Group — per button
LED feedback
Status LED per button
Input power
12 VDC Class 2 (SELV) via Cat5e from the Olympus Room Controller
Consumption
< 1W
Connection
RJ45 Cat5e (T568B)
Protocol
CAN Bus
Topology
Daisy-chain or home-run to the Olympus Room Controller
Zone switch
3-position switch on the back
Mounting
Standard single-gang box, depth ≥ 2.5″
Faceplate
Interchangeable center panel (across Tahoma configurations)
Dimensions
4.72″ × 3.35″ (120 × 85 mm) faceplate; 0.78″ (19.9 mm) rear depth
Operating temp.
32°F to 131°F (0°C to 55°C), 0–90% RH non-condensing
Finish
White (standard). Black, Brushed Aluminum, Brushed Brass and Anodized Aluminum available on request.
Listings
ETL (Intertek) & cETLus to ANSI/UL 916 · CSA C22.2 No. 205 — certification in progress. FCC Part 15 Class B. RoHS compliant.
Warranty
5 years limited — full terms

Values above are taken from specification sheet Rev 1.2, September 2026. The specification sheet governs where it and this page differ.

Documentation

The Tahoma spec sheet.

CYN-SWX · Rev 1.2 · September 2026 · PDF · 6 pages

Download PDF English Français All downloads

Wiring diagrams

Single zone Two zone Dual power pack

If the viewer above does not display on your device, use the download button. Need this content in an accessible format? Email [email protected] and we will supply it at no charge — see our Accessibility Statement.

Next step

Build a room with Tahoma in it.

Launch configurator →
